Forming · Compact

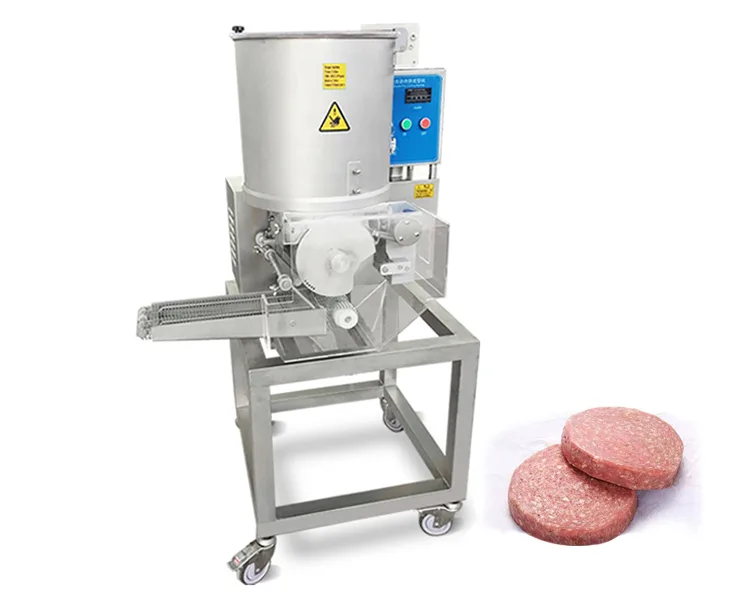

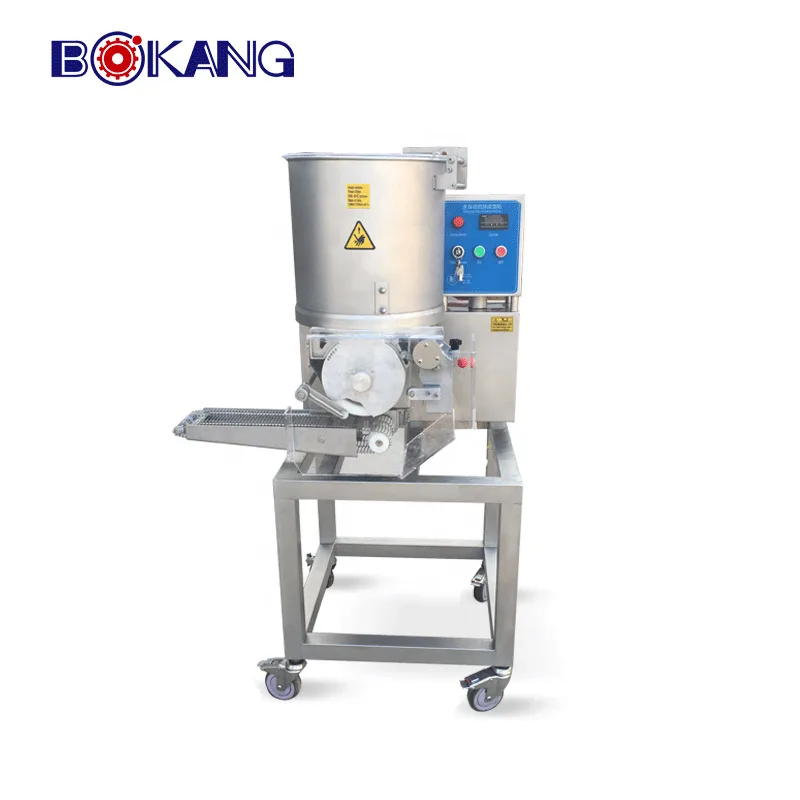

CXJ100 Small Burger Patty Machine
A compact automatic former for restaurants, central kitchens and small plants. It fills, forms, places paper and discharges up to 35 patties per minute.
- Output 35 pcs/min
- Hopper 30 L
- Power 0.55 kW
- Weight 100 kg
Overview
The CXJ100 automates the whole patty forming cycle: filling the mould, forming, paper interleaving and discharging. Change the mould to produce round, square, oval, triangle, heart and other shapes.
It is small enough to stand on a worktable, which makes it a good fit for restaurants, chain store kitchens, butchers and small food plants that want consistent portion size without manual forming.
Key features
Fully automatic cycle
Fills, forms, interleaves paper and discharges each patty.
Many shapes
Round, square, oval, triangle, heart and custom shapes by changing the mould.
Compact
860×600×1400 mm and 100 kg; can be used on a tabletop.
Low power
0.55 kW at 380 V / 50 Hz.
Easy shipping
The legs can be removed to reduce package volume for air freight.
Mini line ready
Can feed a small batter and breading line.
Technical specifications
| Item | CXJ100 |
|---|---|
| Output | 35 pcs/min |
| Hopper volume | 30 L |
| Power | 0.55 kW |
| Voltage | 380 V / 50 Hz (others on request) |
| Weight | 100 kg |
| Dimensions (L×W×H) | 860×600×1400 mm |
Applications
Forms minced products such as:
- Beef and chicken burger patties
- Chicken nuggets
- Fish patties
- Meat pies

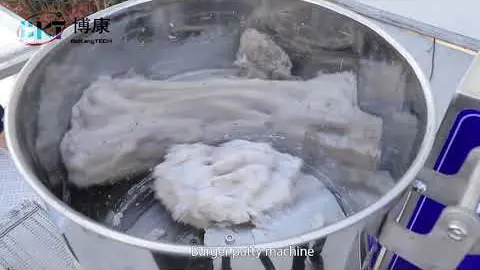

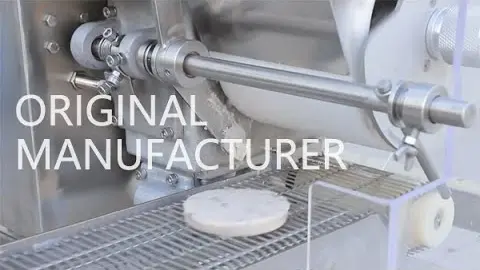

See it running
Where it fits in your line
Use the CXJ100 alone, or as the first machine of a mini coating line.
- CXJ100 forming
- Preduster
- Batter applicator
- Breading machine
Options and customization
- Custom mould shapes and sizes
- Custom voltage
Delivery, warranty and service
| Item | Details |
|---|---|
| Lead time | Confirmed with quotation. By air or express, delivery takes about 2–3 days after dispatch; by sea about 14–35 days to port. |
| Voltage | 380 V / 50 Hz standard; other voltages on request |
| Warranty | 12 months |
| Packing | Export wooden case; fumigated for shipments to Europe |
| Payment | T/T 30% deposit, 70% before shipment |
| Service | Remote support, spare parts, on-site installation and training on request |
FAQ
How many patties per minute does the CXJ100 make?
Up to 35 pieces per minute.
Can I make different shapes?
Yes. Change the mould to make round, square, oval, triangle, heart or custom shapes.
Can the CXJ100 be shipped by air?
Yes. We remove the legs to make the package smaller. Air or express delivery takes about 2–3 days after dispatch.
Is it suitable for a restaurant?
Yes. It is compact enough for a worktable and is used by restaurants, chain store kitchens and small food plants.
