Forming
Patty & Nugget Forming Machines
From a tabletop burger machine to a 1000 kg/h industrial former. Every model accepts custom moulds for your own shapes and sizes.
Our forming machines

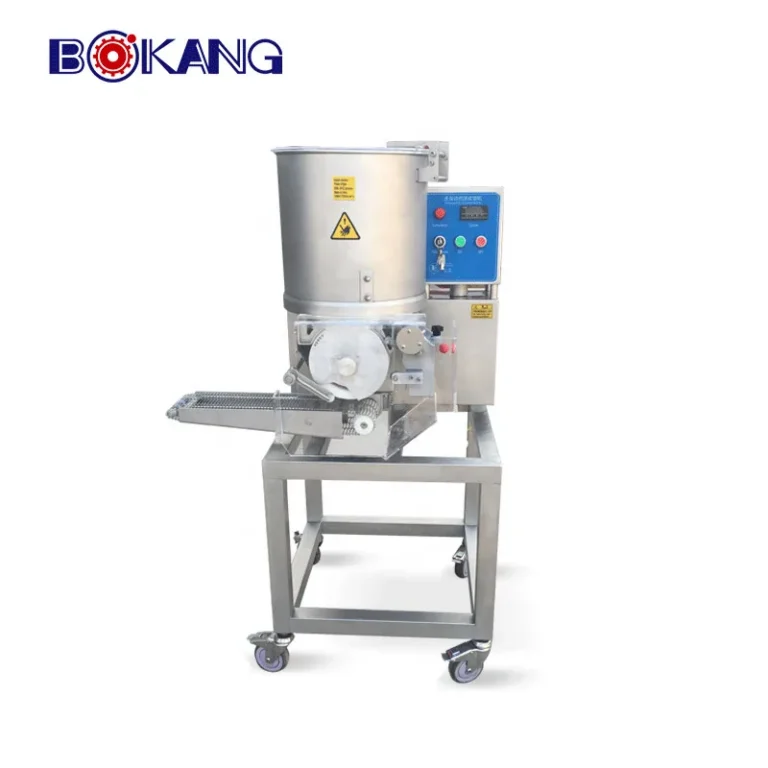

CXJ100 Small Burger Patty MachineCompact automatic patty former, 35 pcs/min, 0.55 kW. Changeable moulds for round, square, oval, triangle and heart shapes.View details →

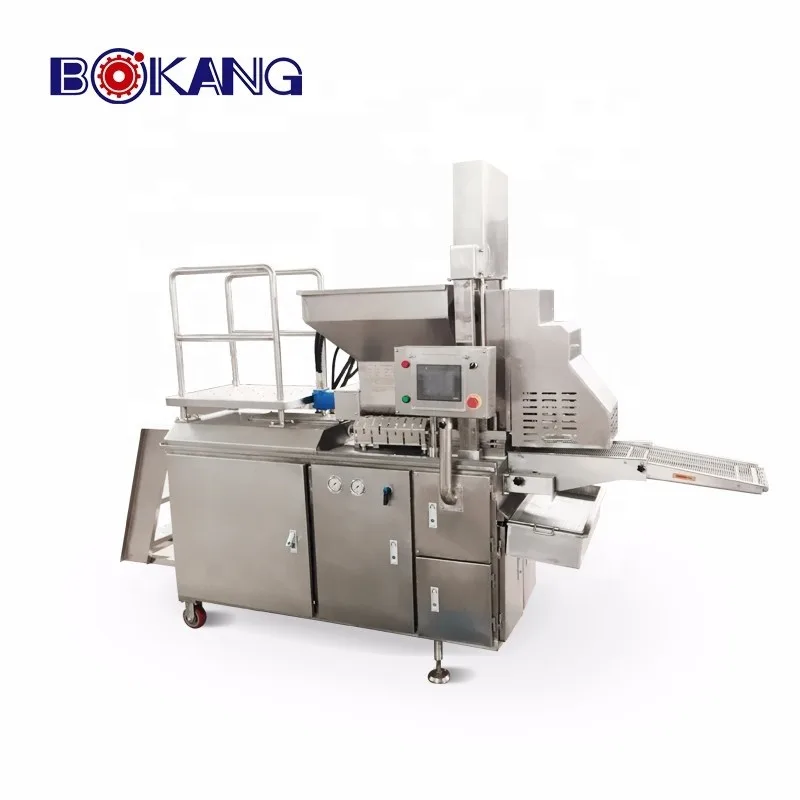

CXJ400 Automatic Forming Machine200–600 kg/h automatic former for nuggets, patties and hash browns. Siemens PLC, FESTO pneumatics, ≤1% weight error.View details →
CXJ600 High-Capacity Forming Machine500–1000 kg/h forming machine with four-screw feeding to protect meat texture. Up to 150 mm diameter and 40 mm thickness.View details →Compare models
| Model | Capacity | Max. size | Power | Best for |
|---|---|---|---|---|
| CXJ100 | 35 pcs/min | — | 0.55 kW | Restaurants, kitchens, small plants |
| CXJ400 | 200–600 kg/h | Ø135 mm, 6–25 mm thick | 11 kW | Medium plants; nuggets, patties, hash browns |
| CXJ600 | 500–1000 kg/h | Ø150 mm, 6–40 mm thick | 15.12 kW | High-capacity patty and nugget lines |
Moulds and shapes
Change the mould to produce round, square, oval, star, heart, cartoon and other shapes. We make moulds to your drawing or sample, including sizes for burger patties, nuggets, hash browns, onion rings and squid rings.
Watch our forming machines
FAQ
Which forming machine should I choose?
Choose by capacity and product size: CXJ100 for up to 35 pieces per minute, CXJ400 for 200–600 kg/h and products up to 135 mm, CXJ600 for 500–1000 kg/h and products up to 150 mm.
Can you make custom moulds?
Yes. Send us a drawing or sample of the shape and size you need.
Can the forming machine connect to a coating line?
Yes. The CXJ400 and CXJ600 connect directly to our predusters, batter applicators and breaders.
Not sure which machine fits your product?
Send us your raw material. We test it on our machines for free and share the video and results with you.
Get a quotation
Tell us your food product, target capacity (kg/h) and product size. Our engineers reply within 24 hours with a recommended model, layout and price.
- Free sample testing in our trial lab
- Remote video trial available
- Custom voltage and line layout
