Forming · Medium capacity
CXJ400 Automatic Forming Machine
A high-pressure forming machine for nuggets, burger patties, hash browns and onion rings: 200–600 kg/h with a portion weight error of 1% or less.
- Capacity 200–600 kg/h
- 15–55 strokes/min
- Siemens PLC + FESTO pneumatics
- Weight error ≤1%
Overview
The CXJ400 fills, forms and discharges automatically. Minced and non-whole-muscle materials are pressed into the mould to create stars, circles, rectangles, cartoon shapes and more.
It uses an original Siemens PLC and a complete FESTO pneumatic system, with spiral feeding. The stainless steel and food-grade non-metal construction meets HACCP requirements, and the machine is CE certified.
The CXJ400 connects directly to Bokang predusters, batter applicators, breading machines and fryers, and to your freezer, to form a fully automatic line.
Key features
Siemens PLC
Original Siemens controller for reliable, repeatable operation.
FESTO pneumatics
Complete German FESTO pneumatic system.
Spiral feeding
Steady filling of the mould for consistent portion weight.
Accurate portions
Weight error of 1% or less helps control product cost.
Any shape
Star, circle, rectangle, cartoon and custom moulds.
HACCP and CE
Stainless steel and food-grade materials; CE certified.
Technical specifications
| Item | CXJ400 |
|---|---|
| Belt width | 400 mm |
| Capacity | 200–600 kg/h |
| Speed | 15–55 strokes/min |
| Product thickness | 6–25 mm |
| Max. product diameter | 135 mm |
| Weight error | ≤1% |
| Filling pressure | 3–15 MPa |
| Air / water pressure | 6 bar / 2 bar |
| Power | 11 kW |
| Dimensions (L×W×H) | 3700×1200×2700 mm |
Applications
Forms minced meat, poultry, seafood and vegetable materials into:
- Chicken nuggets and cartoon nuggets
- Burger patties
- Hash browns
- Onion rings and squid rings

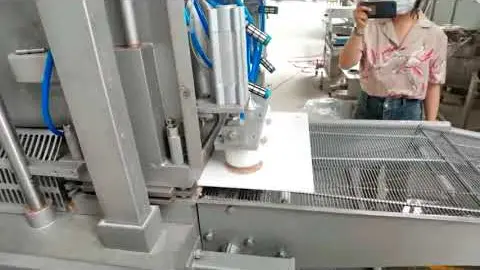

See it running

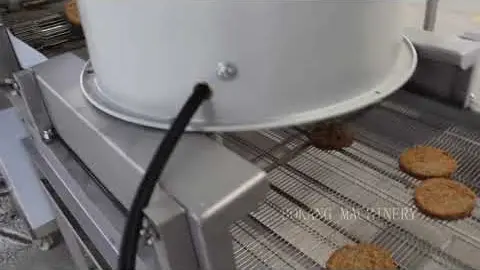

Where it fits in your line
The CXJ400 is the first machine of a 400 mm coating line.
- Bucket lifter
- CXJ400 forming
- SFJ400 preduster
- Batter applicator
- Breading machine
- Continuous fryer
Options and customization
- Custom moulds (shape, size, thickness)
- Custom voltage
Delivery, warranty and service
| Item | Details |
|---|---|
| Lead time | Confirmed with quotation. |
| Voltage | 380 V / 50 Hz standard; other voltages on request |
| Warranty | 12 months |
| Packing | Export wooden case; fumigated for shipments to Europe |
| Payment | T/T 30% deposit, 70% before shipment |
| Service | Remote support, spare parts, on-site installation and training on request |
FAQ
What capacity does the CXJ400 have?
200–600 kg/h depending on product size and weight, at 15–55 strokes per minute.
What is the maximum product size?
Up to 135 mm in diameter and 6–25 mm thick.
Which control system does it use?
An original Siemens PLC with a complete FESTO pneumatic system.
Can it make hash browns and onion rings?
Yes. With the right mould it forms potato, vegetable and seafood mixes as well as meat.
