Batter & Breading · Special shapes

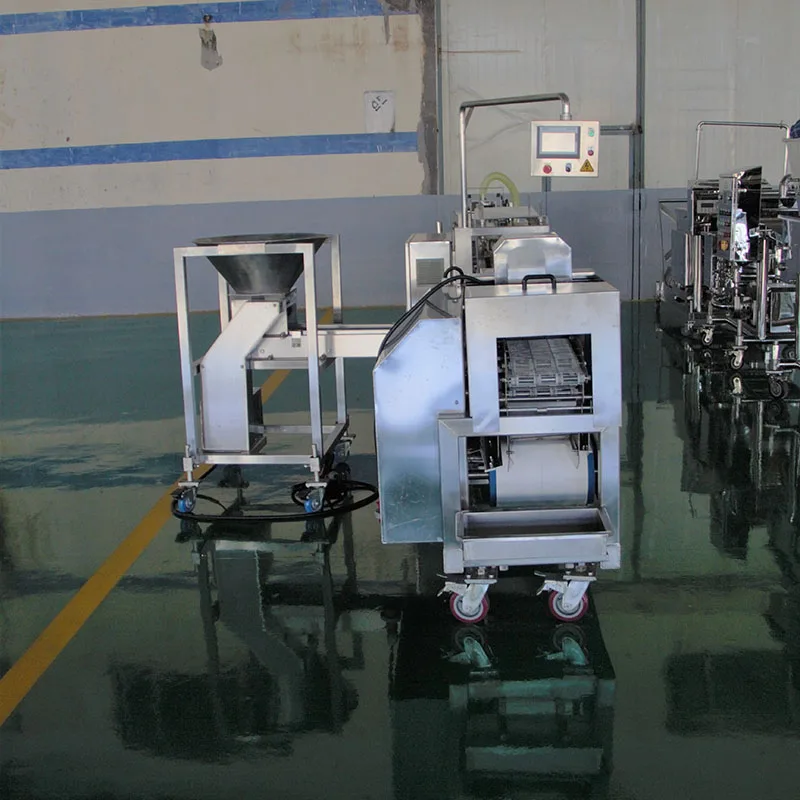

DLS200 3D Batter & Breading Machine
Built for products that are not flat. The DLS200 fully coats spherical, cylindrical and irregular shapes, from oysters to butterfly shrimp and skewered items.
- Belt width 212 mm
- Power 3.75 kW
- PLC control with touch screen
- Food-contact parts detachable
Overview
Round, tall and irregular products are hard to coat on a flat breading bed: crumbs miss the sides, and soft products can be damaged. The DLS200 has a special structure that coats almost any irregular shape completely.
It is controlled by a PLC with a touch screen, uses an imported modular conveyor belt for long service life, and all parts that touch food are detachable for cleaning. It can be combined with a freezer to form a complete production line.
Key features
3D coverage
Special construction coats spherical, cylindrical and irregular products fully.
PLC control
Stable operation with a programmable controller.
Touch screen
Simple setting and monitoring.
Modular belt
Imported modular conveyor belt with long service life.
Easy cleaning
All food-contact parts are detachable.
Line ready
Connects to a freezer for a complete line.
Technical specifications
| Model | DLS200 |
|---|---|
| Belt width | 212 mm |
| Power | 3.75 kW |
| Dimensions (L×W×H) | 2750×1050×1430 mm |
Applications
Designed for irregular and delicate products:
- Oysters
- Eggs
- Butterfly shrimp
- Products on sticks (skewers)
- Other spherical or cylindrical items
Where it fits in your line
The DLS200 is often used in seafood lines after blanching and freezing, and before the final freezer.
- Blanching or preparation
- Freezing
- Predusting and battering
- DLS200 3D breading
- Freezing and packing
Delivery, warranty and service
| Item | Details |
|---|---|
| Lead time | Confirmed with quotation. |
| Voltage | 380 V / 50 Hz standard; other voltages on request |
| Warranty | 12 months |
| Packing | Export wooden case; fumigated for shipments to Europe |
| Payment | T/T 30% deposit, 70% before shipment |
| Service | Remote support, spare parts, on-site installation and training on request |
FAQ
Which products need a 3D breading machine?
Products that are round, tall or irregular, such as oysters, eggs, butterfly shrimp and skewered items, where a flat breader cannot coat the sides evenly.
Can it coat soft products?
Yes. Soft and ball-shaped products such as eggs and breaded oysters are typical applications.
Can I test my product first?
Yes. Send us samples and we run them on the DLS200 in our trial lab and send you the results.
Related machines
SFJ Series Preduster MachineFlour predusting machine with adjustable top and bottom flour layers, 300–600 mm belt widths. The first step of every batter and breading line.View details →
NJJ Series Tempura Batter ApplicatorDipping-type batter machine for thick and tempura batters. Products pass fully submerged between two mesh belts; ice tanks keep the batter cool.View details →
LJJ Series Batter Spraying MachineBatter curtain plus lower bath for an even wet coating on both sides. Adjustable pump, blower and belt speed for thin and medium batters.View details →
SXJ Series Breading MachineTunnel breading machine for free-flowing breadcrumbs with adjustable top and bottom crumb layers. 300–600 mm belt widths.View details →
XXJ Belt Type Breading Machine for Fresh & Panko CrumbsBelt-conveyed breading machine for large fresh and panko crumbs. Two press rollers press crumbs on firmly with minimal crumb breakage.View details →
GFJ600 Drum Breader & Drum PredusterRotating drum coats irregular and bite-size pieces evenly, including folds. Ideal for popcorn chicken, nuggets and tenders.View details →Get a quotation
Tell us your food product, target capacity (kg/h) and product size. Our engineers reply within 24 hours with a recommended model, layout and price.
