Batter & Breading · Fresh crumbs
XXJ Belt Type Breading Machine for Fresh & Panko Crumbs
Large, fresh breadcrumbs break easily in screw-fed breaders. The XXJ conveys crumbs on a belt and presses them on with two large rollers for a full, crisp coating.
- Belt widths 400 / 600 mm
- Power 3.35 kW
- Dry and wet (fresh) crumbs
- Two press rollers
Overview
Japanese-style fresh breadcrumbs and panko give products a light, crunchy texture, but their large flakes are fragile. The XXJ breading machine uses a conveying belt instead of screws to move the crumbs, which causes less damage to the crumb structure.
Two large press rollers press the crumbs firmly onto the product so the coating is complete. The machine handles both dry and wet crumbs and is especially suited to large wet crumbs. It is designed for multi-lane, high-capacity production with consistent quality.
Key features
Gentle on crumbs
Belt conveying keeps fresh and panko crumbs intact.
Firm pressing
Two large press rollers fix the crumbs onto the product.
Dry or wet crumbs
Works with dry crumbs and with large fresh (wet) crumbs.
High capacity
Suitable for multiple product lanes and continuous production.
Premium look
Ideal for products where a visible, fluffy crumb is part of the appeal.
Line ready
400 mm and 600 mm widths match our coating lines.
Technical specifications
| Model | XXJ400 | XXJ600 |
|---|---|---|
| Belt width | 400 mm | 600 mm |
| Power | 3.35 kW | 3.35 kW |
| Dimensions (L×W×H) | 4000×1475×1940 mm | 4000×1675×1940 mm |
Applications
Use the XXJ for products where the crumb texture matters:
- Panko-coated shrimp
- Breaded fish fillets with fresh crumbs
- Croquettes
See it running

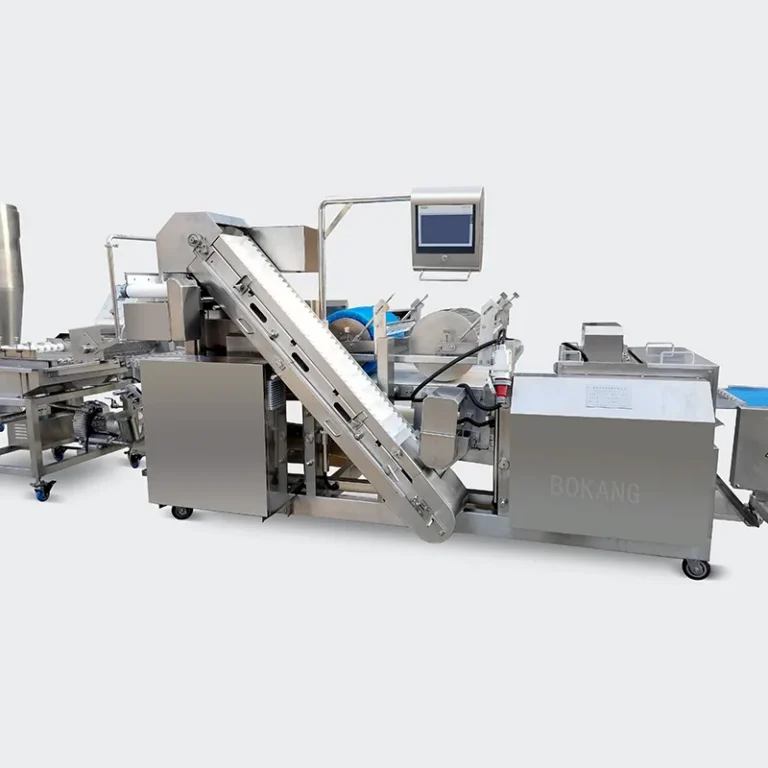

Where it fits in your line
The XXJ follows the batter applicator. Fresh-crumb products are often trimmed and tray-loaded for chilling or freezing afterwards.
- Preduster
- Batter applicator
- XXJ breading machine
- Trimming and tray loading
- Chilling or freezing
Delivery, warranty and service
| Item | Details |
|---|---|
| Lead time | Confirmed with quotation. |
| Voltage | 380 V / 50 Hz standard; other voltages on request |
| Warranty | 12 months |
| Packing | Export wooden case; fumigated for shipments to Europe |
| Payment | T/T 30% deposit, 70% before shipment |
| Service | Remote support, spare parts, on-site installation and training on request |
FAQ
What is the difference between the XXJ and the SXJ breading machine?
The SXJ is a tunnel breader for free-flowing crumbs. The XXJ moves crumbs on a belt and presses them with rollers, which protects large fresh and panko crumbs.
Can the XXJ use dry crumbs too?
Yes. It handles dry and wet crumbs, and it is especially suited to large fresh crumbs.
Which products benefit most?
Products where a large, visible crumb is part of the quality, such as panko shrimp and fish fillets with fresh crumbs.
