Batter & Breading · Step 3

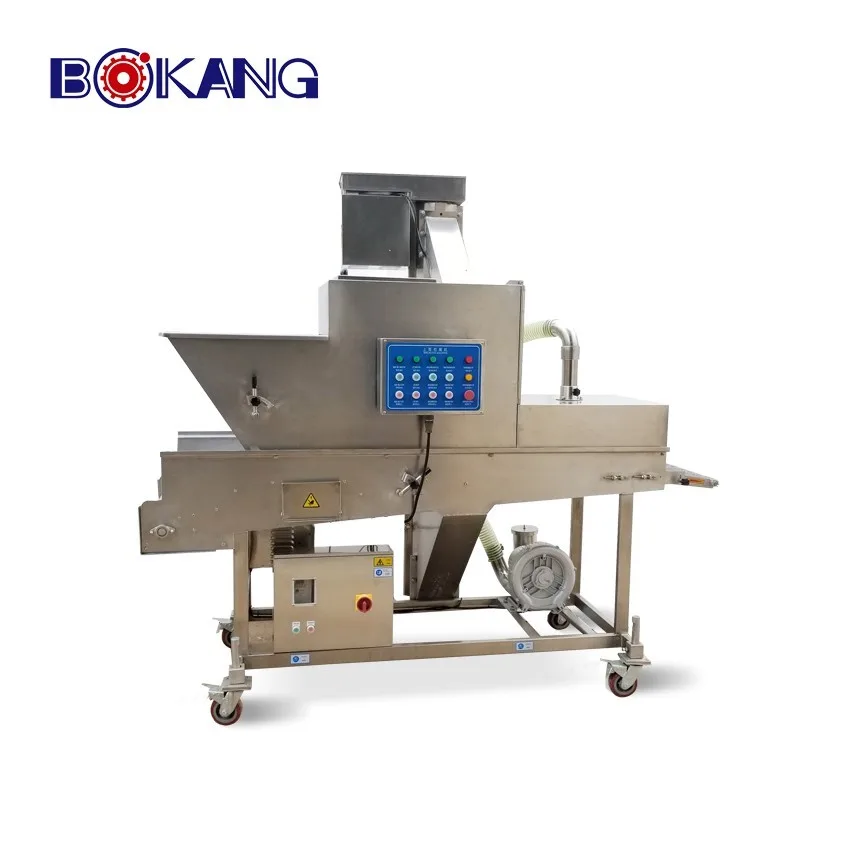

SXJ Series Breading Machine
The SXJ breading machine covers products with breadcrumbs from above and below in a crumb tunnel, giving a uniform crumb layer at line speed.
- Belt widths 300 / 400 / 600 mm
- Belt speed 3–15 m/min (VFD)
- Adjustable top and bottom crumb layers
- For free-flowing crumbs
Overview
The SXJ breading machine is a tunnel breader for free-flowing breadcrumbs. The product runs on a bed of crumbs while crumbs fall on top, so the coating is applied evenly on all sides after the batter step.
The thickness of the upper and lower crumb layers is adjustable, the mesh belt speed is set by a frequency inverter, and the machine is designed for easy cleaning and maintenance.
For large fresh crumbs and panko, see the XXJ belt type breading machine, which uses press rollers and a belt to protect delicate crumbs.
Key features
Even crumb coverage
Bottom crumb bed and top crumb curtain coat every side.
Adjustable layers
Set the upper and lower crumb thickness for your product.
Variable speed
Frequency inverter control matches the belt speed to your line.
Easy cleaning
Designed for quick cleaning and simple maintenance.
Line ready
Matches the belt widths of our preduster and batter machines.
Range of sizes
From 300 mm for small plants up to 600 mm for high-capacity lines.
Technical specifications
| Model | SXJ300 | SXJ400 | SXJ600 |
|---|---|---|---|
| Belt width | 300 mm | 400 mm | 600 mm |
| Belt speed | 3–15 m/min | 3–15 m/min | 3–15 m/min |
| Power | 1 kW | 2.55 kW | 4.2 kW |
| Dimensions (L×W×H) | 1390×650×1320 mm | 3020×880×1250 mm | 2900×1160×2280 mm |
Also available: SXJ200 and SXJ600-II. Contact us for their specifications.
Applications
Typical breaded products made with the SXJ:
- Burger patties
- Fish fingers
- Croquettes
- Onion rings
- Chicken nuggets and fillets

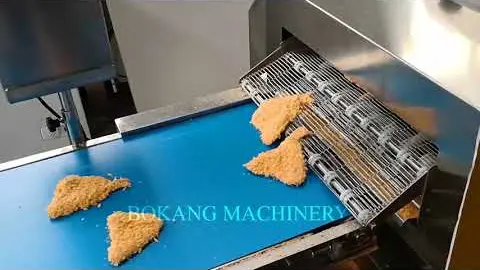

See it running
Where it fits in your line
The breading machine follows the batter applicator and feeds the fryer or freezer.
- Preduster
- Batter applicator
- SXJ breading machine
- Continuous fryer or freezer
Delivery, warranty and service
| Item | Details |
|---|---|
| Lead time | SXJ300: 7–15 days. SXJ400 / SXJ600: confirmed with quotation. |
| Voltage | 380 V / 50 Hz standard; other voltages on request |
| Warranty | 12 months |
| Packing | Export wooden case; fumigated for shipments to Europe |
| Payment | T/T 30% deposit, 70% before shipment |
| Service | Remote support, spare parts, on-site installation and training on request |
FAQ
Which crumbs work in the SXJ breading machine?
The SXJ is designed for free-flowing crumbs. For large, fresh or panko-style crumbs that break easily, we recommend the XXJ belt type breading machine.
Can I adjust how much breadcrumb is applied?
Yes. Both the top and bottom crumb layers are adjustable, and belt speed is variable.
Do you make smaller or larger versions?
Besides SXJ300, SXJ400 and SXJ600, we also build the SXJ200 and SXJ600-II. Ask us for details.
