Batter & Breading · Step 2

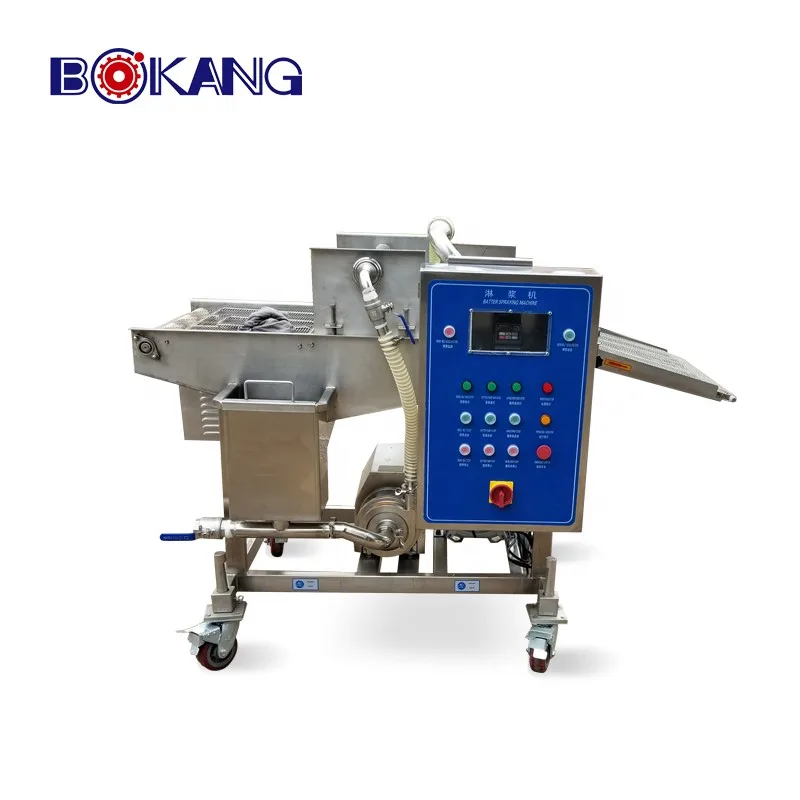

LJJ Series Batter Spraying Machine

A batter curtain from above and a batter bath below coat both sides of the product evenly. A blower removes the excess before breading.

Belt widths 300 / 400 / 600 mm
Belt speed 3–15 m/min
Pump, blower and belt speed adjustable
Even coating top and bottom

Get a Quote WhatsApp

Overview

The LJJ batter spraying machine, also called an overflow batter applicator, applies a wet coating with a falling batter curtain and a batter groove underneath the belt. Products stay in order on the belt and are coated evenly on the top and bottom.

It is typically used as the wet coating step before breading, or after predusting. Pump speed, blower air velocity and belt speed are all adjustable, so you can fine-tune the coating weight for each product.

Chicken pieces coated by the LJJ batter spraying machine — Chicken pieces coated by the batter spraying machine

Key features

Two-sided coating

Curtain from above, bath from below: both sides are coated in one pass.

Products stay in order

The product layout on the belt is kept, ready for the breading machine.

Three adjustments

Pump speed, blower air speed and belt speed are all adjustable.

Excess removal

The blower removes extra batter from the upper and lower surfaces.

Wet step before breading

Use it after predusting and before breading or predusting again.

Stainless steel

Built in stainless steel for food contact and wash-down.

Technical specifications

Model	LJJ300	LJJ400	LJJ600
Belt width	300 mm	400 mm	600 mm
Belt speed	3–15 m/min	3–15 m/min	3–15 m/min
Power	1 kW	1.65 kW	2.75 kW
Dimensions (L×W×H)	1400×680×980 mm	1630×880×1250 mm	1630×1080×1250 mm

Applications

For thin and medium batters on poultry, meat and seafood:

Tempura and karaage with thinner batter
Chicken nuggets and fillets before breading
Fish and seafood products
Other thin batter coatings

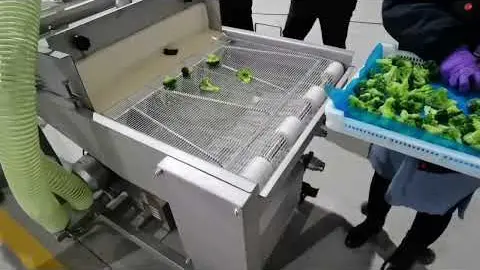

See it running

Where it fits in your line

Place the LJJ between the preduster and the breading machine.

Preduster
LJJ batter spraying machine
Breading machine
Continuous fryer

Delivery, warranty and service

Item	Details
Lead time	LJJ300: 7–15 days. LJJ400 / LJJ600: confirmed with quotation.
Voltage	380 V / 50 Hz standard; other voltages on request
Warranty	12 months
Packing	Export wooden case; fumigated for shipments to Europe
Payment	T/T 30% deposit, 70% before shipment
Service	Remote support, spare parts, on-site installation and training on request

FAQ

Is the LJJ suitable for thick tempura batter?

For very thick or non-pumpable batter, choose the NJJ dipping-type batter applicator. The LJJ is designed for batters that can be pumped through a curtain.

How do I adjust the coating weight?

Change the pump speed for batter flow, the blower air speed for excess removal and the belt speed for dwell time.

Can it follow a forming machine directly?

Yes. In many lines the formed product is predusted first, but the LJJ can also take product straight from the forming machine if your recipe does not need predust.
